[Tech Breakdown] Fluoroscopic Guidance Integration During Complex Endoscopic Suturing Cases

Therapeutic endoscopy has undergone a massive paradigm shift. Once limited to superficial mucosal resections and simple hemostasis, modern endoscopists now routinely perform complex reconstructive procedures within the gastrointestinal (GI) tract. At the forefront of this evolution is endoscopic suturing—a technique that allows for full-thickness tissue apposition using devices like the Apollo OverStitch™.

However, relying solely on high-definition optical views can sometimes leave endoscopists in the dark. The camera only shows what is happening inside the lumen. To safely execute complex endoluminal reconstructions, prevent collateral organ damage, and confirm immediate structural integrity, integrating fluoroscopic guidance is becoming the gold standard.

This technical breakdown explores how combining fluoroscopy with endoscopic suturing optimizes clinical outcomes, enhances safety, and expands the boundaries of minimally invasive GI surgery.

The Evolution of Endoluminal Surgery: Why Endoscopy Alone Isn't Always Enough

Traditional flexible endoscopy provides an exceptional, high-resolution view of the mucosal surface. However, it lacks depth perception beyond the GI wall. When performing advanced endoluminal procedures, the endoscopist face several blind spots:

Extraluminal Anatomy: Adjacent vascular structures, solid organs (like the liver and spleen), and peritoneal spaces are invisible to the standard endoscope.
Tissue Depth Assessment: Ensuring a "full-thickness" bite is critical for durable suturing, but optical feedback alone cannot always distinguish between a mucosal-submucosal bite and a true transmural suture.
Device Orientation: In altered surgical anatomies, such as post-bariatric gastric bypasses, maintaining spatial orientation is incredibly challenging.

By integrating real-time fluoroscopic imaging, clinicians gain a "dual-vision" capability: optical visualization of the mucosal surface combined with radiographic visualization of the deep tissue layers, device geometry, and surrounding anatomy.

Understanding the Synergy: How Fluoroscopy Enhances Endoscopic Suturing

Integrating a fluoroscopic C-arm into the endoscopy suite transforms how complex suturing cases are approached. It bridges the gap between intraluminal action and extraluminal safety.

+-----------------------------------------------------------------+
|                       DUAL-VISION SYSTEM                        |
+----------------------------------+------------------------------+
|       OPTICAL ENDOSCOPY          |     FLUOROSCOPIC GUIDANCE    |
|  - Surface mucosal inspection    |  - Extraluminal landmarking  |
|  - Precise suture target site    |  - Needle depth & trajectory |
|  - Suture knot deployment        |  - Post-procedural leak check|
+----------------------------------+------------------------------+

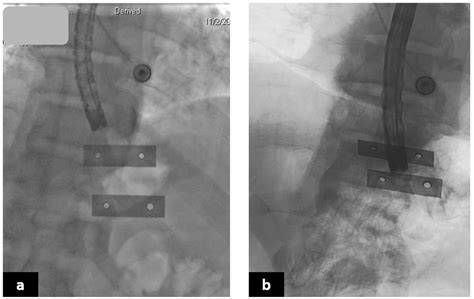

Visualizing Beyond the Mucosa

Fluoroscopy allows the operator to track the exact position of the suturing device relative to external anatomical landmarks (e.g., the diaphragm, ribs, and vertebral column). By administering water-soluble contrast media (such as Gastrografin) through the endoscope accessory channel, the team can instantly map out the contours of a pouch, tract, or stricture.

Ensuring Safe Needle Depth and Path

During endoscopic suturing, a tissue-retaining anchor or helix is often used to pull tissue into the stitching mechanism.

The Risk: Pulling too aggressively can cause the needle to transfix adjacent organs or major blood vessels.
The Fluoroscopic Solution: Real-time X-ray monitoring confirms that the needle driver path is clear of extraluminal hazards and that the suture anchor has successfully deployed on the serosal side of the tissue wall without catching adjacent structures.

Key Clinical Indications for Fluoroscopic-Assisted Endoscopic Suturing

While straightforward mucosal closures may not require radiographic support, several complex scenarios make fluoroscopic integration indispensable.

1. Transoral Outlet Reduction (TORe) & Bariatric Revisions

Over time, patients who have undergone Roux-en-Y Gastric Bypass (RYGB) may experience weight regain due to the dilation of the gastrojejunal anastomosis (GJA). TORe uses endoscopic suturing to reduce the diameter of this outlet.

Why Fluoroscopy Matters: Accurate sizing of the pouch and the restricted outlet is critical. Fluoroscopy allows for real-time pouchograms using contrast to measure the volume of the gastric pouch and verify the restricted diameter of the stoma during and immediately after suture placement.

2. Management of Large Gastrointestinal Perforations and Fistulas

Closing chronic fistulas (e.g., gastrocutaneous or post-surgical leaks) is notoriously difficult due to fibrotic tissue and altered anatomy.

Why Fluoroscopy Matters: Injecting contrast under fluoroscopy identifies the exact path, origin, and termination of the fistula tract. The endoscopist can then place targeted sutures to close the internal opening while verifying on fluoroscopy that contrast extravasation has ceased entirely.

3. Anchoring Fully Covered Self-Expanding Metal Stents (FCSEMS)

Fully covered stents are highly prone to migration within the esophagus or anastomosis sites. Suturing the proximal collar of the stent to the healthy tissue wall prevents this complication.

Why Fluoroscopy Matters: Fluoroscopy ensures the stent is fully expanded and perfectly aligned across the target lesion or leak before the sutures are locked down. It also prevents the suturing needle from accidentally shredding the stent membrane or catching the wire mesh in a way that prevents device release.

Step-by-Step Workflow: Integrating Fluoroscopy into the Endoscopy Suite

Executing a seamless hybrid procedure requires coordinated planning between the endoscopy team, anesthesia, and the radiology technician.

Step 1: Patient Positioning & C-Arm Alignment
  │
  ▼
Step 2: Contrast Opacification & Target Mapping
  │
  ▼
Step 3: Endoscopic Suturing Device Deployment
  │
  ▼
Step 4: Fluoroscopic Suture Verification (Depth/Trajectory)
  │
  ▼
Step 5: Contrast Leak Test & Final Suture Lock-Down

Step 1: Patient Positioning and Room Setup

Place the patient in a left lateral decubitus or prone position on a fluoroscopy-compatible (carbon fiber) table. Align the C-arm to allow unobstructed anteroposterior (AP) and oblique views of the target GI zone (e.g., the gastroesophageal junction or gastric pouch).

Step 2: Contrast Opacification

Prior to mounting the suturing device, perform an initial diagnostic endoscopy. Inject water-soluble contrast through the endoscope to outline the anatomy, pinpointing the exact areas of leak, fistula, or dilation under fluoroscopy.

Step 3: Device Mounting and Insertion

Mount the endoscopic suturing system (e.g., Apollo OverStitch) onto the therapeutic double-channel gastroscope. Lubricate the system thoroughly. Under direct endoscopic visualization, pass the scope through the esophagus, using fluoroscopy to assist in navigating tight angles or strictures without causing secondary trauma.

Step 4: Suture Placement with Radiographic Checks

Tissue Grasping: Use the tissue helix to engage the target tissue.
Fluoroscopic Check: Tap the fluoroscopy pedal to confirm the depth of the helix and ensure it has not anchored into an adjacent organ.
Needle Passage: Deploy the needle through the tissue. Fluoroscopically verify that the needle-carrier arm has cleared the tissue wall cleanly.
Suture Tensioning: Prior to deploying the cinch (suture lock), use fluoroscopy to observe the tissue plication and ensure the lumen is not excessively narrowed or distorted.

Step 5: Post-Suture Leak Testing

Once the sutures are locked, inject contrast directly into the treated area. Observe under fluoroscopy for any signs of contrast extravasation. If a leak persists, additional targeted sutures can be placed immediately.

Technical Comparison: Direct Endoscopic Visualization vs. Fluoroscopic Guidance

Best Practices for Safety, Radiation Mitigation, and Efficiency

While hybrid imaging provides undeniable clinical advantages, it also introduces radiation exposure and procedural complexity. Implementing these best practices ensures a safe and efficient workflow:

Adhere to the ALARA Principle (As Low As Reasonably Achievable): Use pulsed fluoroscopy (e.g., 7.5 frames per second) instead of continuous exposure to minimize the radiation dose to both the patient and the medical team.
Coordinate Communication: Establish clear verbal cues between the lead endoscopist and the C-arm operator (e.g., "Fluoro on," "Fluoro off," "Save image"). This avoids unnecessary exposure times.
Utilize Lead Shielding: Ensure all staff members wear appropriate lead aprons, thyroid shields, and leaded glasses. Place a protective lead skirt on the patient's lower body when imaging the upper GI tract.
Manage Scope Position: Avoid keeping the endoscope directly in the center of the fluoroscopic field when capturing high-contrast images, as the metal components of the scope can cause halation (glare) and degrade image quality.

Conclusion: The Future of Hybrid Endoluminal Interventions

Integrating fluoroscopic guidance with complex endoscopic suturing represents a major leap forward in patient safety and procedural efficacy. By removing the "blind spot" of transmural suturing, this hybrid approach allows endoscopists to perform highly precise, durable, and safe reconstructions within the GI tract.

As endoluminal procedures continue to replace traditional open and laparoscopic surgeries, mastering the synergy of optical and radiographic imaging will remain a hallmark of advanced, high-tier therapeutic endoscopists.
